All kinds of wooden structures used different hands and tools. Master craftsmen artistically created beautiful designs and patterns on wood. But today, due to the remarkable progress that has been made in various fields such as technology and technology, it has led to the production of various devices that can be used to easily perform various operations such as drilling, inlaying, cutting, etc. created without using hands on wood or MDF. Also, nowadays, due to the progress in the field of wood and MDF machines, it is necessary and necessary to know and check these machines. Wood and MDF industry machines are divided into different categories, each of which has different functions and features. Various types of CNC machines are designed and produced, such as wood rotary CNC, flat cutting and wood engraving CNC, and console CNC, each of which has different functions and specifications. Among the other types of wood and MDF industry machines, we can mention woodworking waste, vacuum press machine, and edge banding machine.

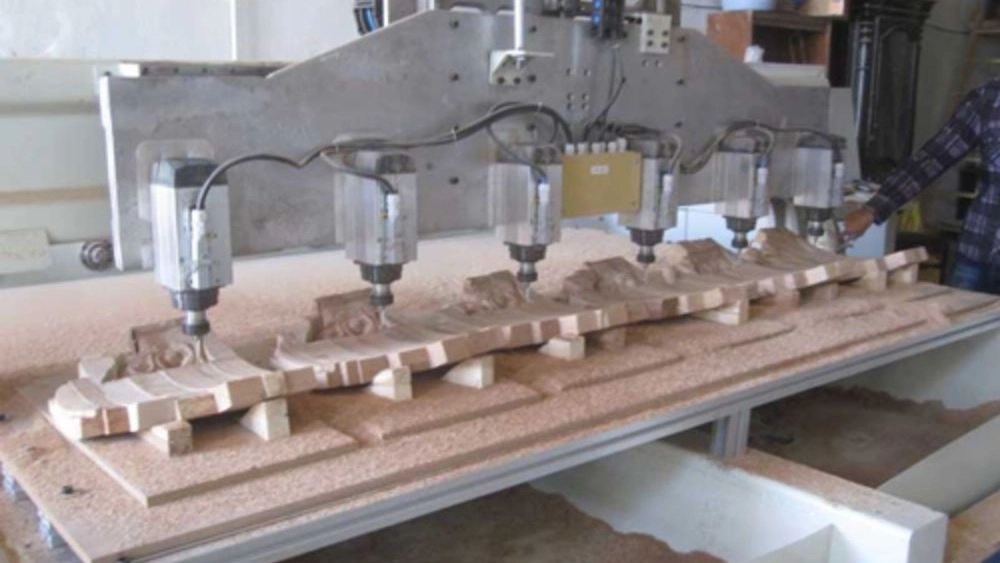

CNC rotary wood is one of the most practical types of wood and MDF industry machines, which is divided into two categories: machine and manual. Wood rotary CNC is also called CNC inlay machine. This CNC machine model is a combination of a mechanical machine and a computer program, which is controlled by intelligent software programs, and its mechanical part is responsible for cutting and engraving on wood or MDF. A great advantage of the CNC rotary wood machine compared to the manual one is that the computer will take over the task of the operator and the quality of the work will be much higher. Wood rotary CNC also has a different number of heads. Wood rotary CNC or inlaid CNC is made up of various components that are continuously and seamlessly connected and the operator controls the performance of all of them with the help of a computer. By using CNC rotary wood, you can create inlay work automatically on all types of wood and MDF and design and produce various products.

Considering the many similarities that exist in CNC inlay with other CNC machines, it can be said that their components are also similar or have the same titles. Among the components of CNC wood carving, the following can be mentioned: Controller system and computer system Spindle cutting table Linear axis system

The brain of the wood rotary CNC is the controller system and the computer system, where all the control and design programs are done in this section. The controller and computer system provides the operation of the machine and engines to the operator, in a way it divides the tasks with the operator. Most of the designs that are going to be given to the machine are prepared in a digital format such as DXF design and stored in the machine's memory. In this part, the operator uses CAM software to convert the designed images into a two-dimensional or three-dimensional digital image with G-code format. All these processes have been converted into a digital command in the controller system and computer system of CNC rotary wood, which is executed by mechanical tools.

The spindle in the wood rotary machine works like a manual router. The task of the spindle is to rotate cutting tools such as drills and drills, which are sold in the market based on horsepower or watts. The spindle in wood rotary CNC provides different speeds in carrying out the commands of the controller system. The spindle in the wood rotary CNC will set the speed from 8000 to 30000 rpm for cutting all kinds of plastic, wood and soft materials, but it will provide the speed from 2000 to 10000 for cutting metals. One thing you should know is that the routers available in CNC rotary wood can also cut all kinds of metals, but their use is limited to metals such as aluminum. The spindle is controlled by the wood rotary CNC controller system and their speed is adjusted based on the material and the amount of input current to the machine. Also, nowadays, in new examples of inlaid CNC, motion and touch sensors have been tried to increase work safety.

The cutting table is one of the main parts of the wood rotary CNC machine, which has the task of maintaining the work piece during the cutting operation. Cutting tables are designed and produced in different types, the most common are CNC rotary wood cutting tables, flat tables, or T-slot tables, which have a T-shaped groove that increases the safety of the work and allows the work piece to be placed on the table. In some rotary CNC machines, the wood cutting table is fixed and in others it is movable.

The linear axis system is another part of the wood rotary CNC, which is installed horizontally on the table and is responsible for holding and moving the spindle. In the manual wood rotary machine, the spindle is connected to the linear axis system by means of tools and provides the basis for the movement of the spindle in the X and Y directions, which will cause vertical cuts by moving the table of the wood rotary CNC machine. But in the advanced models of CNC wood rotary machine, the linear axis system can perform all horizontal and vertical movements. In the advanced mode, 4, 6, 8, 10, 12, 16 and 16-head systems are used in wood rotary cnc, which can perform different vertical and horizontal cuts at the same time.

Vacuum press machine is one of the types of practical machines in the field of wood industry, which is very useful for producing decorative accessories and making decorations and equipment. Also, this model of vacuum press machine is used for gluing PVC on wood and mdf and making cabinets with various covers. In general, a vacuum press machine is used by applying pressure to place an additional layer, which may be of any material. To describe the function of the vacuum press, it should be said that the two factors of heat and vacuum play a very important role. At first, the operator determines the design pattern and speed of operation from the control part of the device, and after setting the optimal conditions for coating the desired part, the temperature used, and the amount of vacuum, the product production stage begins. In the product production stage, the vacuum press elements are activated and the tray of the machine is heated, then the work piece is placed on the tray and the additional layer is placed on the piece according to the pattern of the tray. After the layer is exposed to heat, the suction device is also activated and creates a vacuum in its lower part.

Vacuum press machine consists of the following different parts and components: Control system and design tray suction system Heating system Anti-wrinkle system
